FINE GROUP OF COMPANIES. |
| |
FINE SPAVY ASSOCIATES AND ENGINEERS PVT. LTD. |
| |
|
|
| |

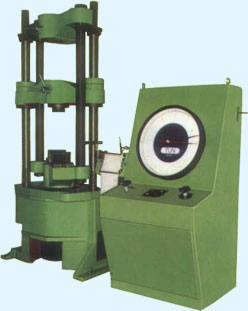

Universal Testing Machine (Model -TUN, TUE) |
| |

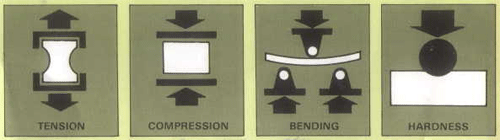

Suitable for testing a wide range of metallic materials. Load Range 100 kN to 1000 kN
Accuracy conforms to IS 1828.
Variety of extra accessories such as attachments for Brinell test, threaded & shouldered specimens. 1800 Bend test, Load Stabiliser, Shear Test, Extensometer etc. available.
Microporcessor based measuring panel for loan & elongation measurement can also
be supplied (Model - TUE)
|
|
|
|
| |
Spring Testing Machine : (Model - STM, FST)
For Coil/Helical/Laminated Springs Load Range 60 kN to 500 kN. |
Compression Testing Machines : (Model -FCT)
Load Range 1000 kN, 2000kN,3000kN Accuracy of +/ -1% per IS 1828 |
Chain & Rope Testing Machine : (Model -FCR)
Load Range - 500 to 2000 kN. Load measurement by Pendulum Dynamometer principle. Alternatively Load Cell arrangement also can be given. |
Tensile Testing Machines : (Model -TKG)
Wide range of Models 200 N to 50 kN. Serves many industries viz. non ferrous metals, wires, Cables, Plastics, rubber, paper, resins, fabrics etc. Choice of straining rates and grips depending upon applications. Accuracy conforms to IS 1828 Tests like tension. Compression crossbreaking adhesion peeling are conducted. Load-Elongation Recorder provided.
Digital Models (TKG-D) are also available. |
Torsion Testing Machine : (Model -FTT)
Torque capacities -100 Nm to 2000 Nm Torque -Angle Recorder is provided.
Set of jaws to accommodate different size and diameters of test specimen provided.
Digital display of angle and motorised recorder also can be supplied (Model FTT -D) |
|
| |
Fine Testing Machines :
• Rockwell Hardness Testers : (Model -TRS) |
Test Loads
Test Height x Throat
TRS |
|
60, 100, 150 kgf
200 x 133 mm
Automatic weight. Selection with automatic zero setting dial gauge. |
|
|
• Rockwell-cum-Superficial hardness Tester: (Model -TSM) |
Test Loads
Test Height x Throat
Motorised Models Available |
|
15, 30 & 45 kgf (Rockwell Superficial) 60, 100, 150 kgf. (Rockwell)
295 x 148 mm
TRS-M, TRB-250-M, TSM-M |
|
• Rockwell-cum-Brinell Hardness Tester : (Model TRB, TRB-250)
|
Test Loads
TRB
TRB-250
Test Ht. x Throat
TRB
TRB-250 |
|
60, 100, 150, 1857
60, 100, 150, 187.5, 250
220 x 13
295 x 148 |
|
| |
• Portable Rockwell Hardness Tester : (Model -TRP-1)
|
Handy and Portable Weight
Test Height x Throrat
Can be used in any direction |
|
1.75 kg.
60, 100, 150 kgf.
110 x 55 |
|
| |
• Brinell Hardness Tester : (Model -TKB-3000)
Test Loads 500 to 3000 kgf in steps of 250 kgf. Indentation Ball dia 5 & 10 mm.
Motorised Machine complete with Test Blocks, Brinell Microscope andother
standard accessorie. Model-TKB-3000-M Simple economical Manual Operated model also available
|
|
| |
• Optical Brinell Hardness Tester (Model -OPFB-3000)
Built in Optical Device with 14 x Magnification projects the ball impression on screen
and is measured by a Micrometer measuring system with 0.01 mm least count. Test
loads 500 to 3000 in steps of 250 |
Test Height x Throrat |
|
380 x 200 mm |
| Automatic Machine to suit production Testing. Accuracy as per IS- |
|
| |
• Fatigue Testing Machine : (Model-FTG-8-D)
Suitable for conducting Rotating Bending Fatigue tests 8mm dia.
Standard test specimens
|
Maximum Bending Moment
Rotating Speed |
|
200 kg
4200 RPM
|
No. of Cycles displayed on a digital counter |
|
| |
• Impact Testing Machines (Model -FIT -300)
The impact tests on metals as per IS 1598, IS 1757, IS 1499 & BS 131.
Part I, II, III & IV can be conducted Charpy & Izod both tests possible.
Machine available in Analog (FIT-300N) or Digital version (FIT-
|
FIT-300 ASTM |
|
Asper ASTM E-23 can be supplied. Model FIT-14J & FIT-42 J
Available for plastics as per IS-867
|
|
| |
• Erichsen Cupping Testing Machine : (Model -SET-20)
This machine is useful for checking the cupping qualities of metallic materials
and also for testing adhesion of coats of paints or varnishes as per IS 10175.
Width of sample 70 to 90 mm. Thickness 0.1 to 2 |
| |
|
| |
BALANCING INSTRUMENTS AND EQUIPMENTS (MIRAJ) PVT. LTD. |
| |
• Dynamic Balancing Machines :
Standard available Models :
• Horizontal End driven 2 plane Machines for rotors weighing 0.5 kgf to 10000 kgf (FBM)
• Horizontal Belt driven 2 plane Machines for rotors weighing 03 to 300 kgf (SBM, FSBM)
• Vertical Hard Bearing Machines for rotors weighing 0.3 to 300 kgf (FVBM)
• Sensitivity of Machines upto 0.2 Microns in the lower range.
• Available with Electronic or Microprocessor based measuring panels with printers
• Special Dynamic Balancing Machines as per customers requirements can be designed & supplied. |
| |
• Computerised Wheel Balancing Machines (Model WHL-50)
• Max. wheet wt. 50 kg.
• Display
• Digital for weight amount
• LED for weight position
• Automatic Braking System
• Min. Weight. Display 1 gram.
• Simultaneous measurement of inner and outer unbalance in a single. |
| |
|
| |
|
